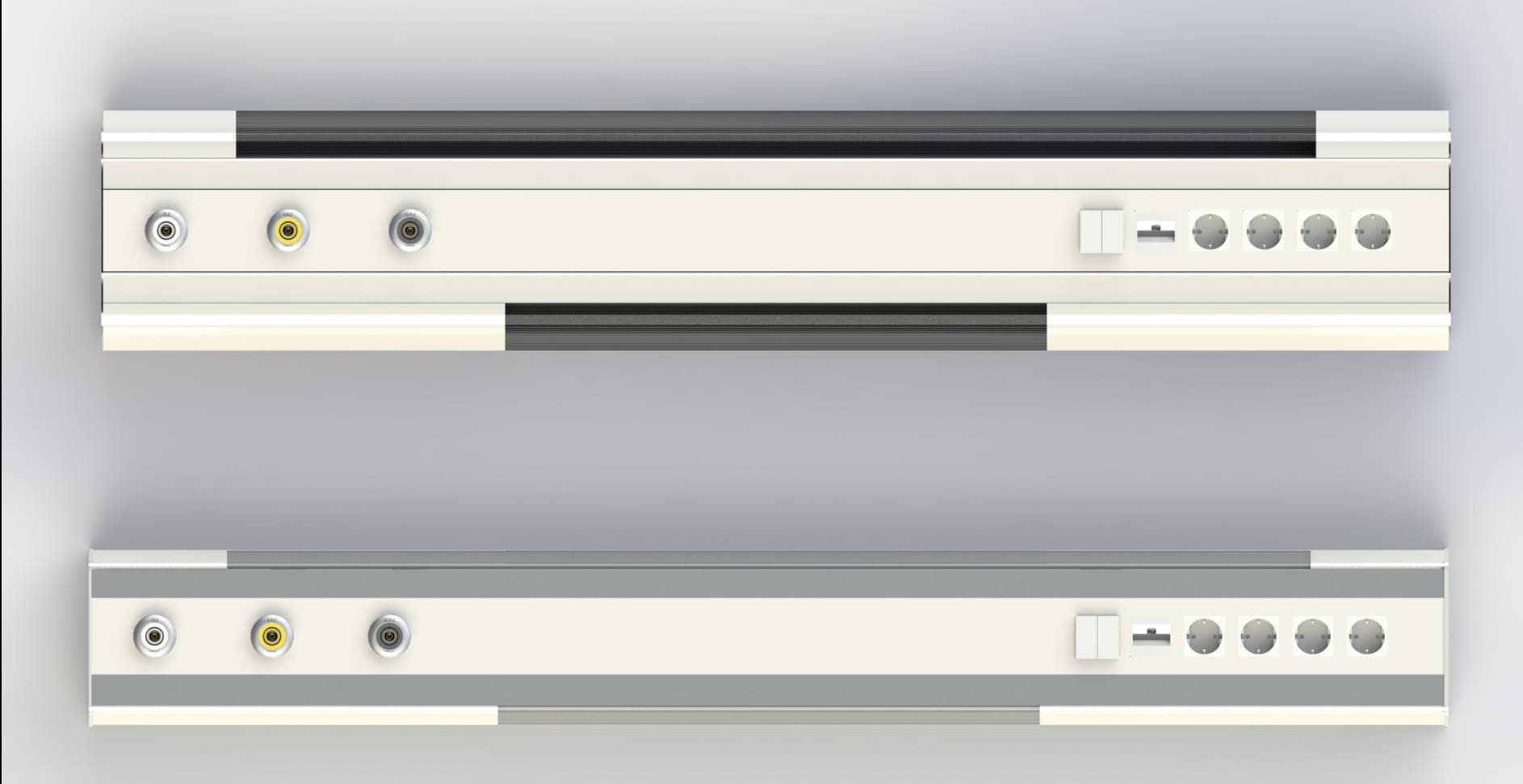

Medical Bedhead Units (BHU)
Integral Medical Bedhead Units are designed to increase the comfort of the patient in hospital wards and intensive care units (ICUs) and to provide medical staff with rapid access to gas and electrical equipment in compliance with EN ISO 11197 standards.
Thanks to internal barrier channels, Medical Gas, 220V Mains/UPS Electrical Power, and Weak Current (Data/Nurse Call) pipelines are completely isolated from each other, guaranteeing full physical and electromagnetic safety.
Key Engineering Features
- 3 Independent Isolated Channels: Aluminum compartmentalization preventing cross-conduction.
- Anti-Bacterial Finish: Electrostatic powder coating in RAL codes suitable for clinical hygiene.
- Integrated Illumination: Direct patient reading lamp and indirect room LED lighting options.
- International Compatibility: BS, DIN, or AFNOR standard medical gas outlet integration.
Technical Documents & Drawings
Tender Specification Text
Medical bedhead units shall be compliant with EN ISO 11197, constructed from corrosion-resistant extruded aluminum, with 3 compartmentalized channels for gas, 220V power, and weak current data lines.
| Feature | Engineering Specification |
|---|---|
| Body Material | Single-piece extruded aluminum with 2 mm wall thickness |
| System Isolation | 3 separate barrier channels for gas, 220V power, and data |
| Surface Finish | Anti-bacterial electrostatic powder coating (RAL coded) |
| Illumination | Direct reading & indirect ambient room LED fixtures |
| Earthing | Integrated equipotential grounding busbar and sockets |
Standard Patient Wards (Single / Twin)
150 cm - 200 cm length for ward rooms, O2, VAC gas outlets, LED reading lamp, and power sockets.
Intensive Care Units (ICU / H-Type)
200 cm - 300 cm custom length with dual gas circuits (O2, VAC, Air4, Air7) and multiple UPS power sockets.
Vertical & Ceiling-Mounted Models
Modular solutions for space-constrained areas, emergency observation, and ceiling drop-down requirements.
