Medical Gas Terminal Units (Outlets)

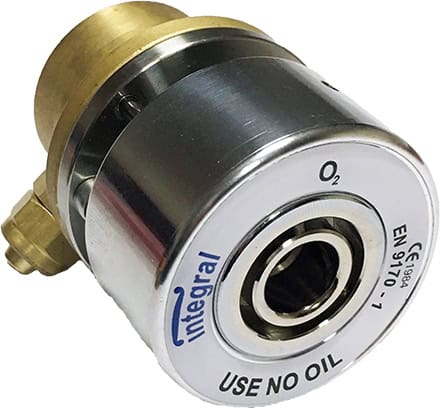

Integral Medical Gas Outlets are engineered to provide safe, quick, and uninterrupted gas flow in all hospital departments. Manufactured strictly according to EN ISO 9170-1:2016 quality standards, our outlets feature a robust brass base block and a nickel-plated brass fascia.
To ensure ultimate patient safety and eliminate the risk of cross-connection, both the base blocks and upper assemblies are gas-specific. The base block only accepts its matching upper assembly, and the upper assembly only accepts its matching gas-specific probe (jack).
Key Structural Features
- Body Material: Corrosion-resistant, MS58 quality brass (nickel-plated surface finish).
- Connection Type: Quick Connect type with single-hand insertion and release.
- Mounting Versatility: Fully compatible with bedhead units, pendants, flush, and surface boxes.
- Sealing: Double O-Ring sealing system, 100% factory leak tested before delivery.
Technical Documents & Drawings
Tender Specification Text
Medical gas outlets shall be manufactured in accordance with EN ISO 9170-1:2016 standard, constructed from MS58 brass with double O-ring sealing system and mechanical gas-specific indexing to prevent cross-connection.
| Gas Type | Color Code (ISO 32) | Working Pressure | Standards |
|---|---|---|---|
| Oxygen (O2) | White | 4 - 5 Bar | BS / DIN |
| Medical Vacuum (VAC) | Yellow | -400 / -700 mmHg | BS / DIN |
| Medical Air (MA4) | Black-White | 4 - 5 Bar | BS / DIN |
| Surgical Air (SA7) | Black-White | 7 - 8 Bar | BS / DIN |
| Nitrous Oxide (N2O) | Blue | 4 - 5 Bar | BS / DIN |
| Carbon Dioxide (CO2) | Grey | 4 - 5 Bar | BS / DIN |
| Gas Outlet Type | British (BS) Code | German (DIN) Code |
|---|---|---|
| Oxygen Outlet | 80101BSO2 |
80101DINO2 |
| 4 Bar Air Outlet | 80101BSMA4 |
80101DINMA4 |
| Vacuum Outlet | 80101BSVAC |
80101DINVAC |
| 7 Bar Surgical Air Outlet | 80101BSSA7 |
80101DINSA7 |
| Nitrous Oxide Outlet | 80101BSN2O |
80101DINN2O |
| Carbon Dioxide Outlet | 80101BSCO2 |
80101DINCO2 |
