Medical Intensive Care Unit Pendants (ICU)
Integral Intensive Care Unit (ICU) Pendants are engineered to position medical gas, electrical, data connections, and heavy medical equipment (monitors, infusion pumps, etc.) ergonomically around the patient bed in critical care environments.
Eliminating cable clutter, the system is constructed from high-quality extruded aluminum in compliance with EN ISO 11197 standards, maximizing efficiency in confined patient bedhead spaces.
Key Structural Safety Features
- High Load Capacity: 150 kg to 250 kg equipment capacity for monitors and infusion pumps.
- 340° Rotation: Articulated arms rotating smoothly 340 degrees around their axis.
- Pneumatic Braking: Button-controlled air brake ensuring drift-free position locking.
- Isolated Compartments: Gas, power (220V/UPS), and data lines routed through isolated channels.
Technical Documents & Drawings
Tender Specification Text
ICU ceiling pendants shall comply with EN ISO 11197 standard, featuring heavy load aluminum extrusion structure, 340° horizontal rotation, pneumatic brake system, and modular gas/power/data shelves.
| Model Type | Technical Feature & Advantage |
|---|---|
| Rigid (Fixed) Pendant | Fixed vertical column. Economical and reliable for space-constrained ceiling layouts. |
| Single Armed Pendant | 340° horizontal rotation capability offering optimal movement flexibility around the bed. |

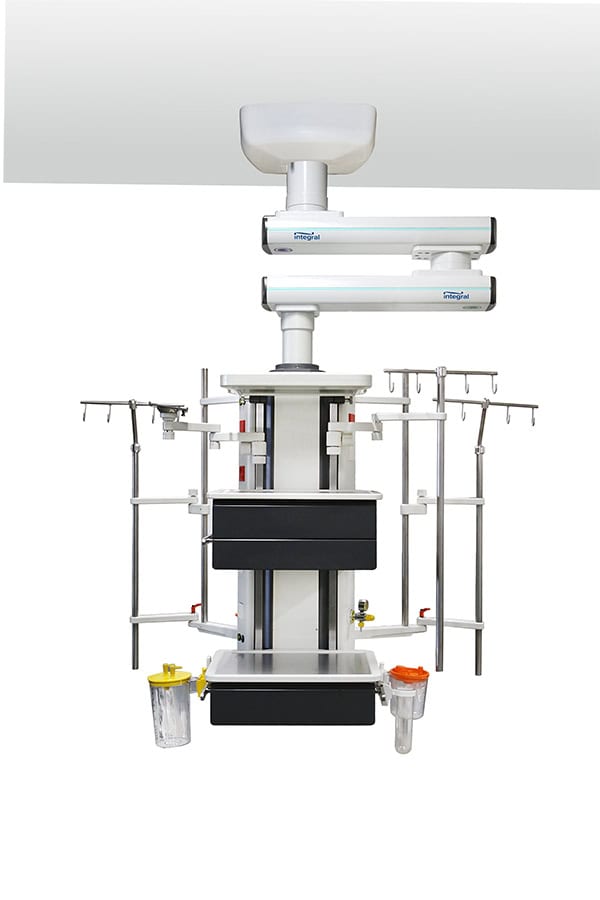

| Double Armed Pendant | Dual arm arrangement providing maximum reach and positioning freedom in large ICUs. |
| Order Code | Pendant Type |
|---|---|
80301 |
Rigid (Fixed) ICU Ceiling Pendant |
80302 |
Single Armed ICU Ceiling Pendant |
80303 |
Double Armed ICU Ceiling Pendant |
